Solar Repeater (beta)

Basic objectives:

• easy and fast to build

• reasonable price

• flexible installation

• decent performance

• weather resistance

Tools required:

• utility knife

• soldering iron

• wire cutters

• pliers

• screwdriver set

• 2-3mm drills

• small file

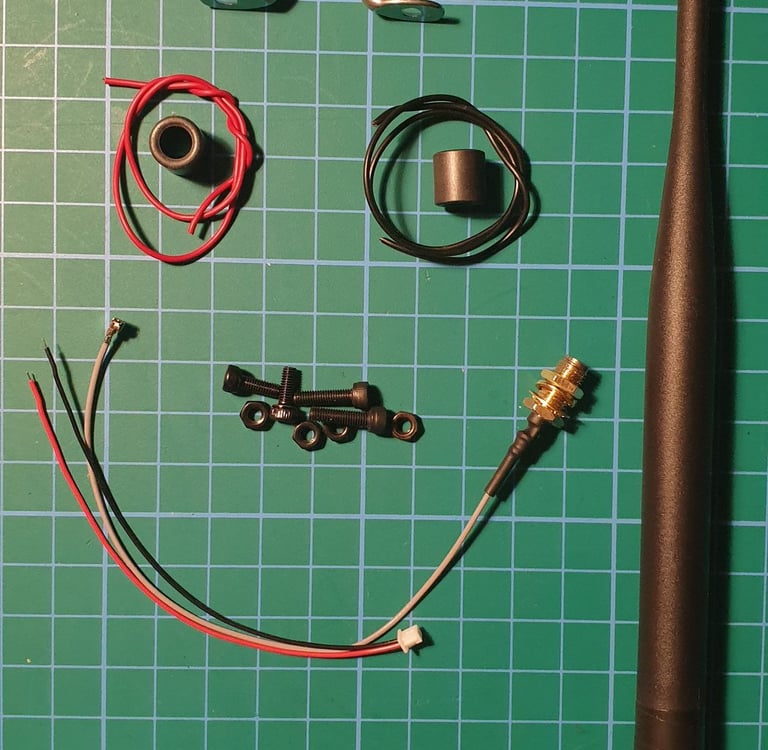

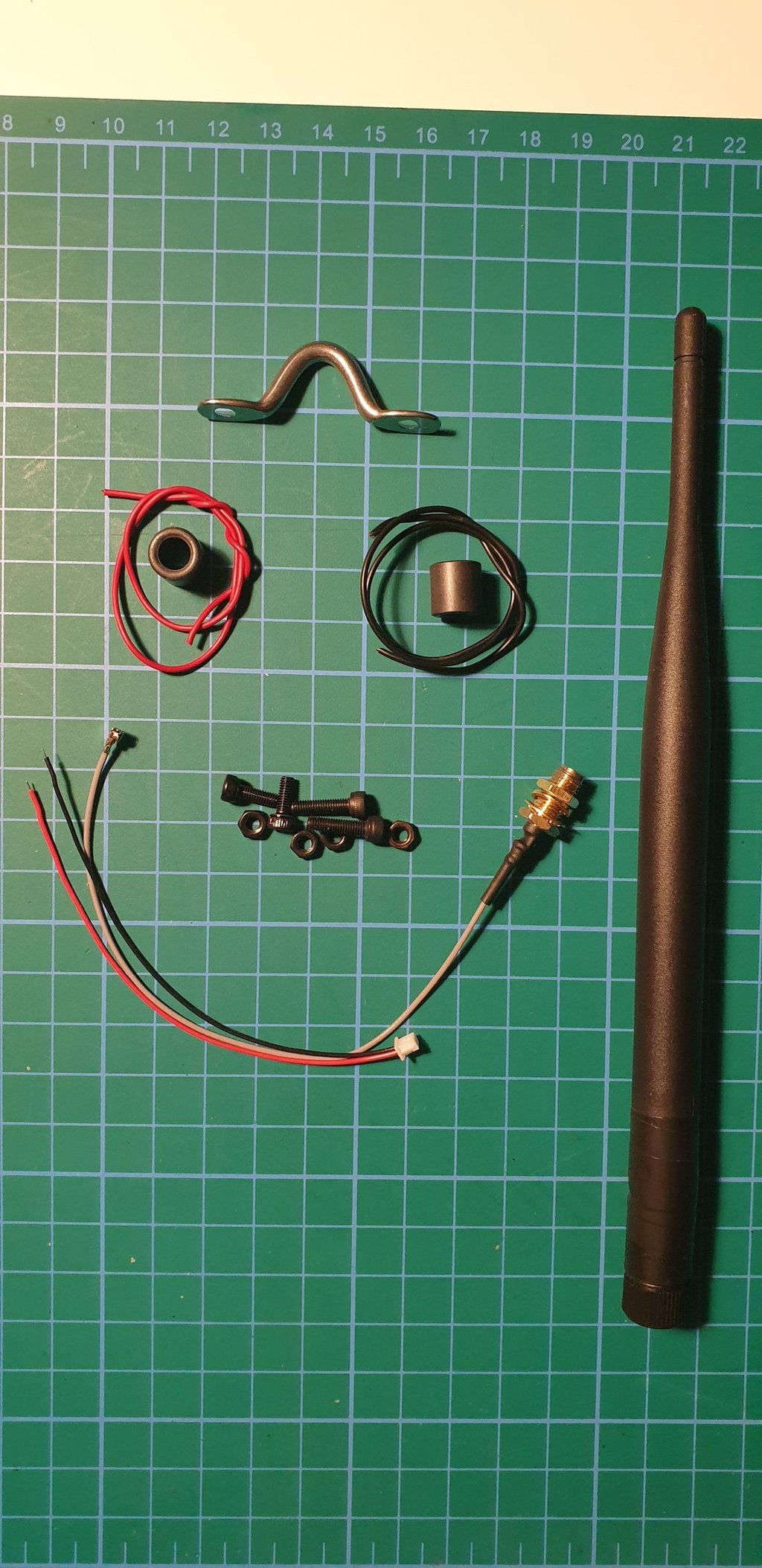

Required materials:

required :

• Solar charging case for 18650

• 1x faketec v4 (other versions should fit too, or other boards with similar size, but might require modification of "PCB case"

• thin electric wires for power connection

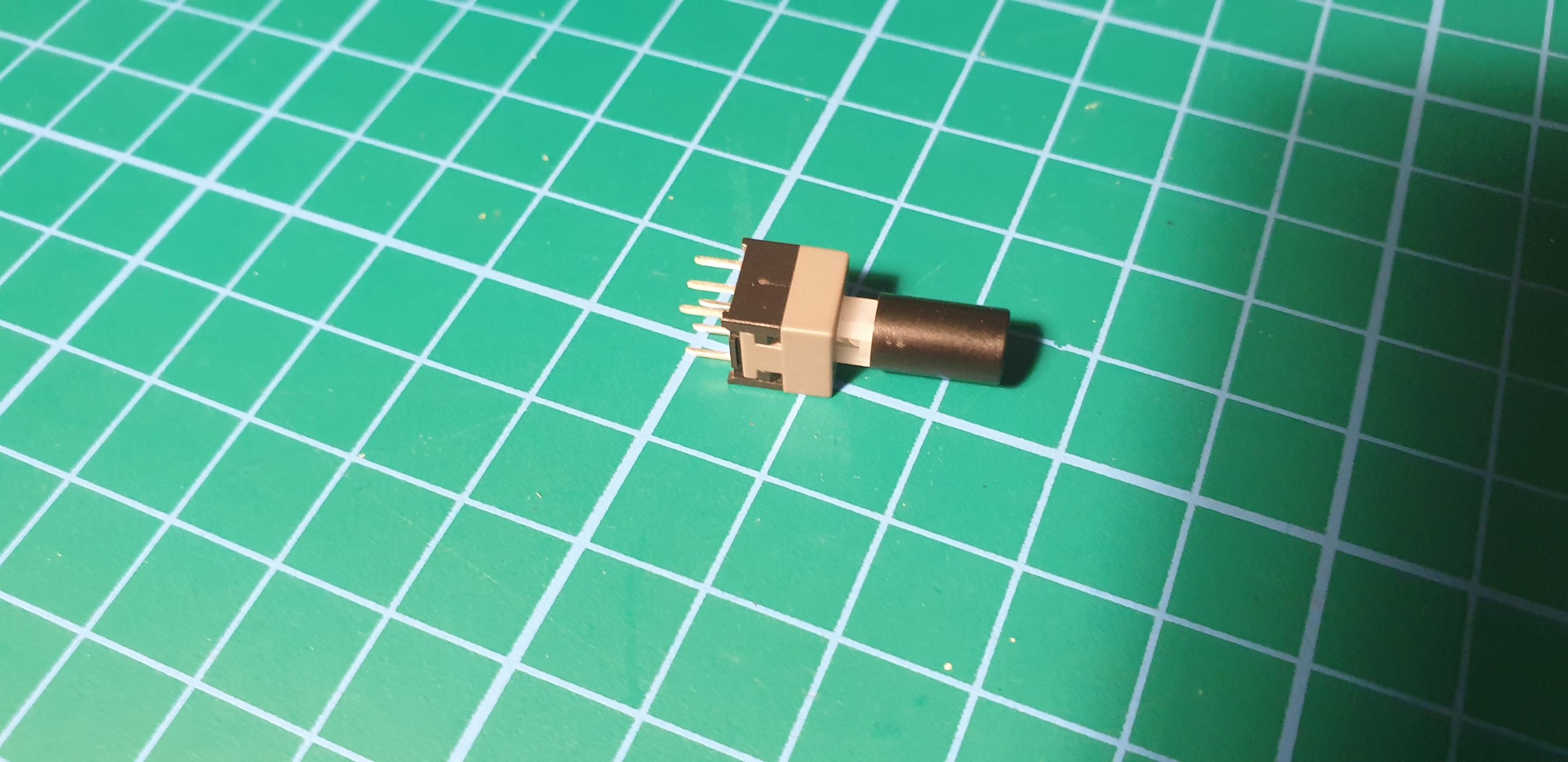

• on/off swith 8x8mm

• SMA pigtail

• SMA antena

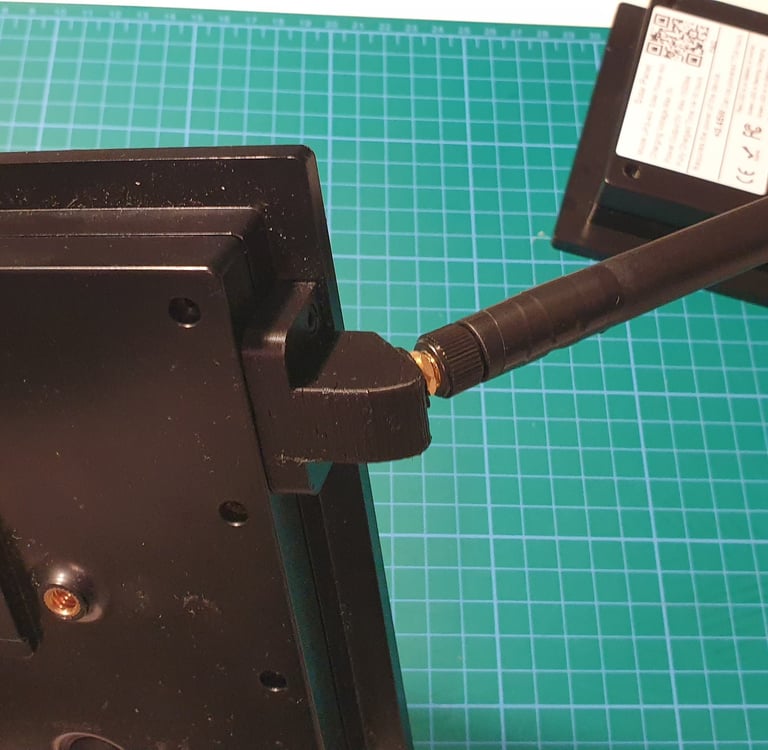

• 3D printed antena adapter 45

• 3d printed pcb case

• bolts M3, 2x8mm, 2x12mm 4x nut

optional:

• JST 1.25mm conetors

• 2x ferrite ring

• self adhesive aluminium tape

• safety mount

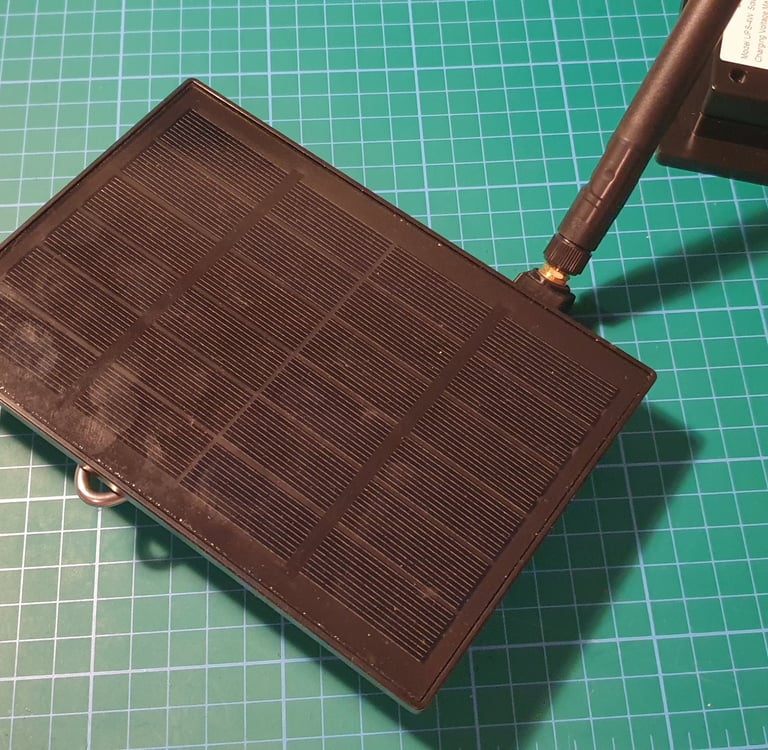

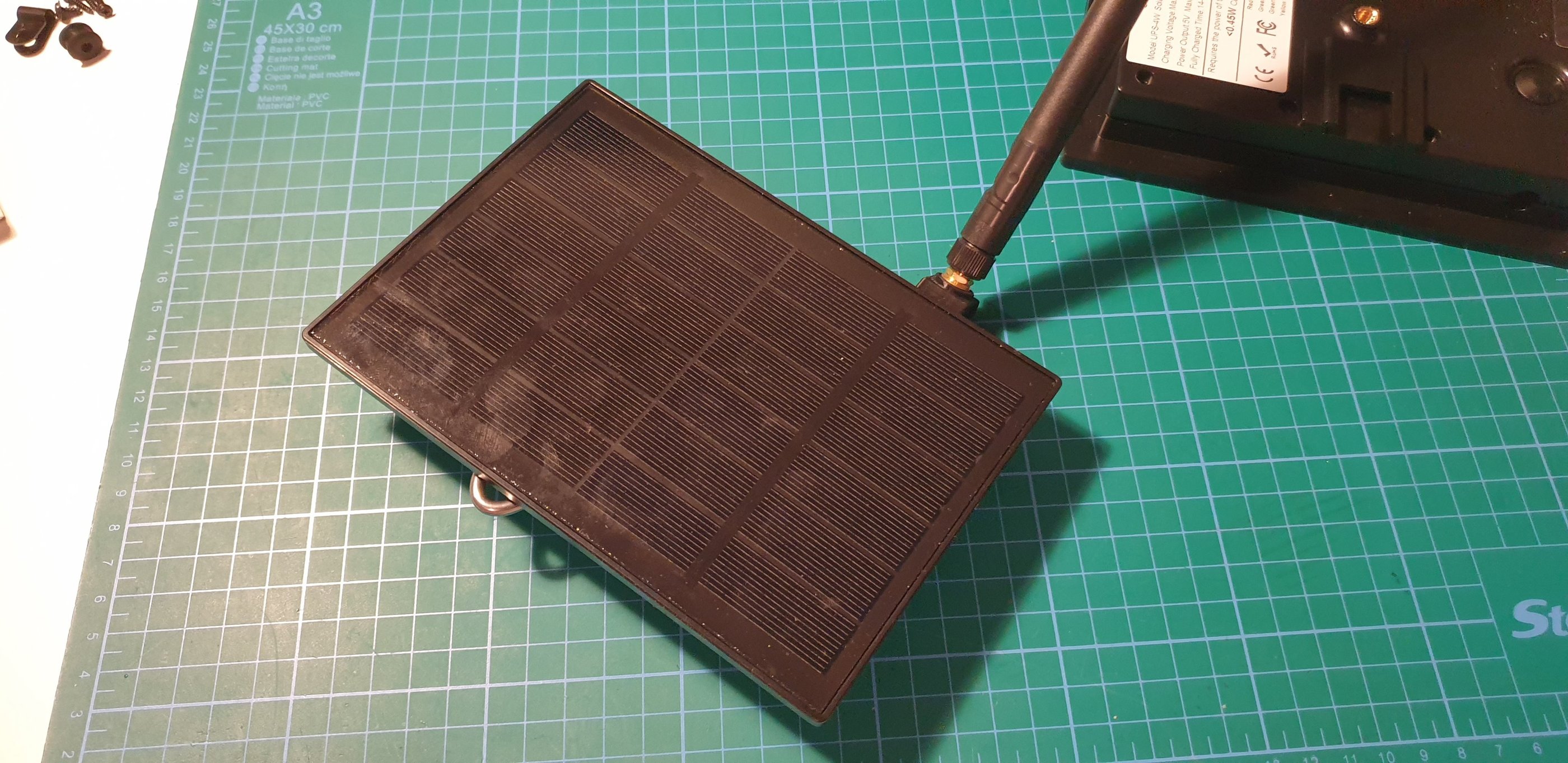

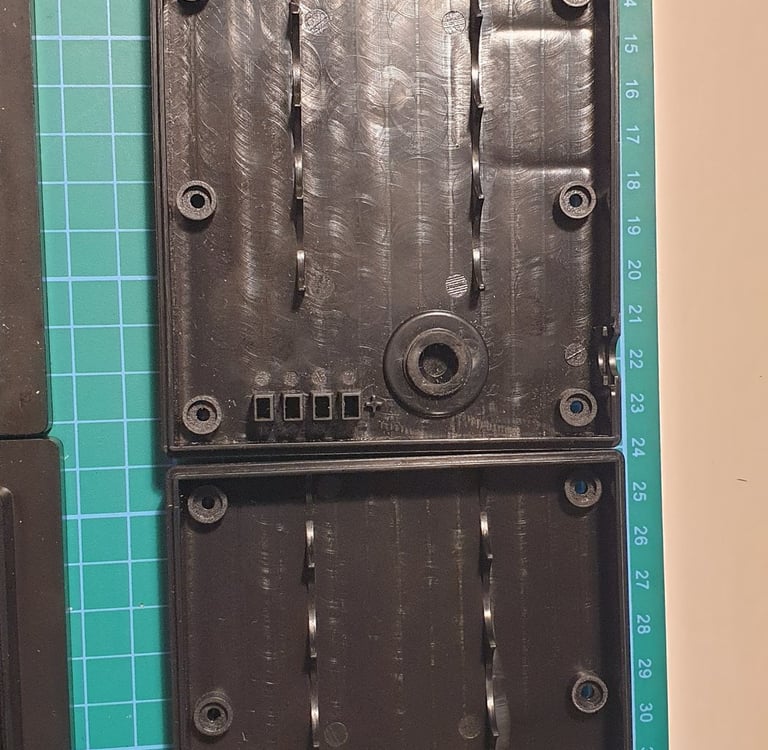

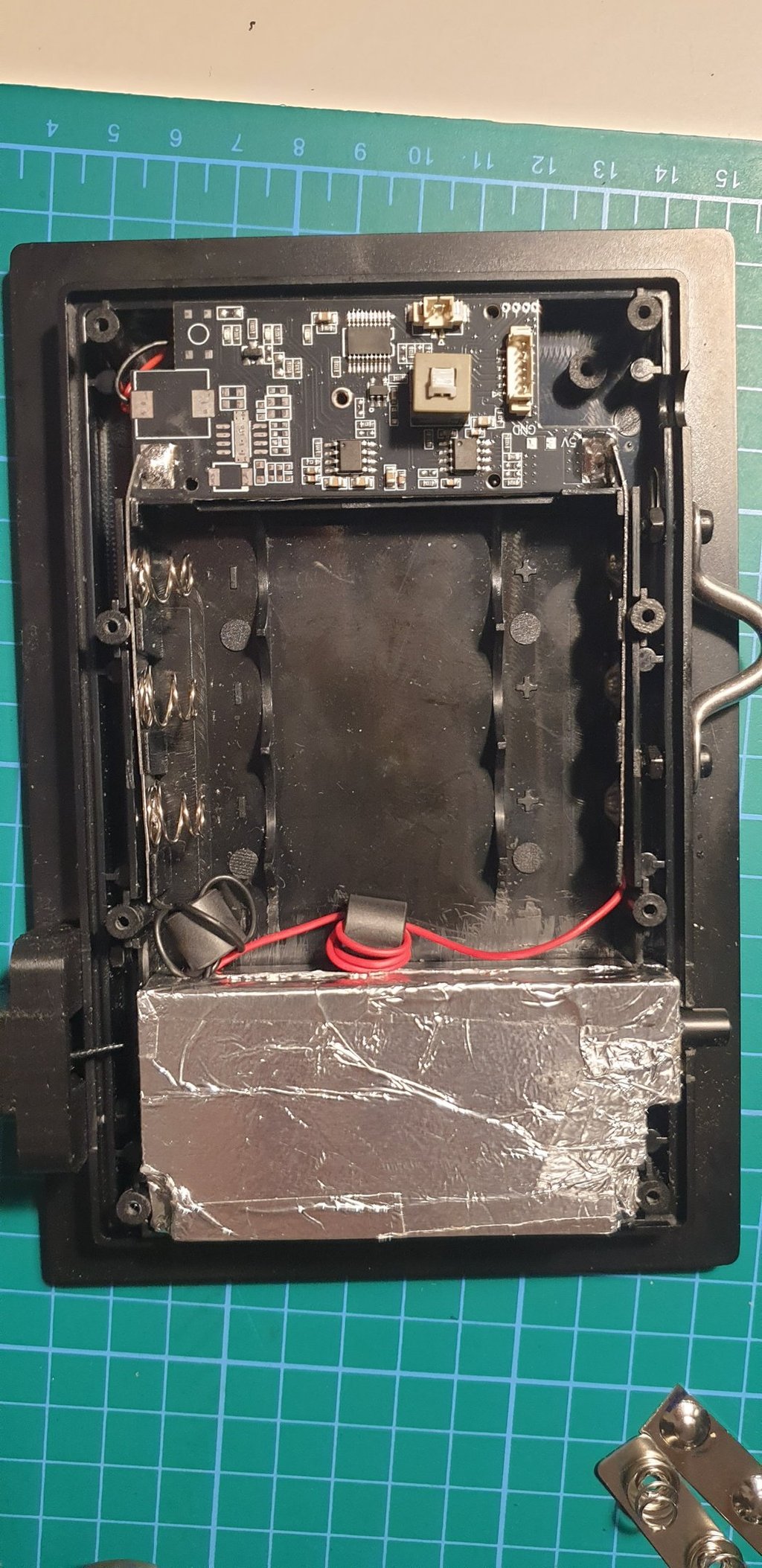

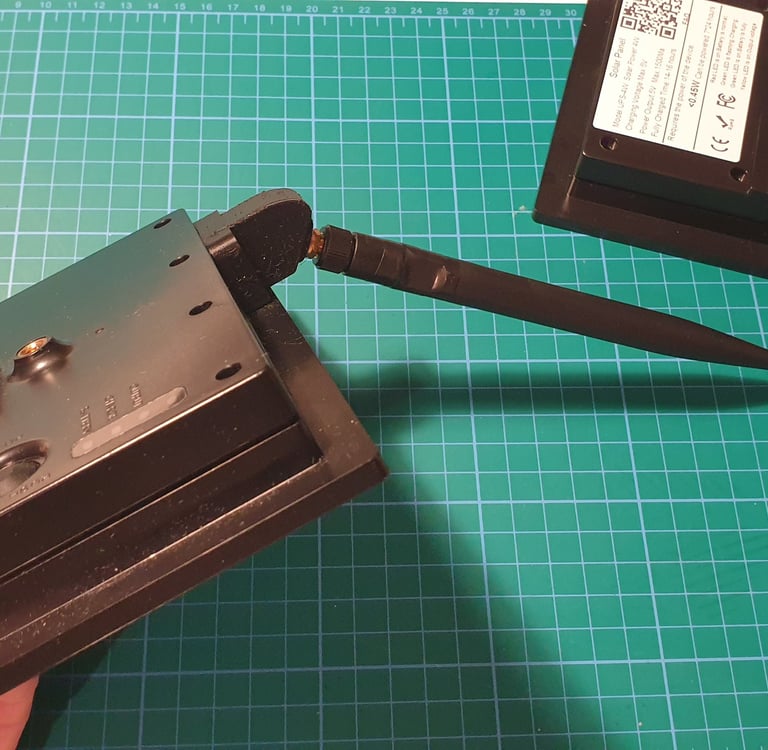

The solar box

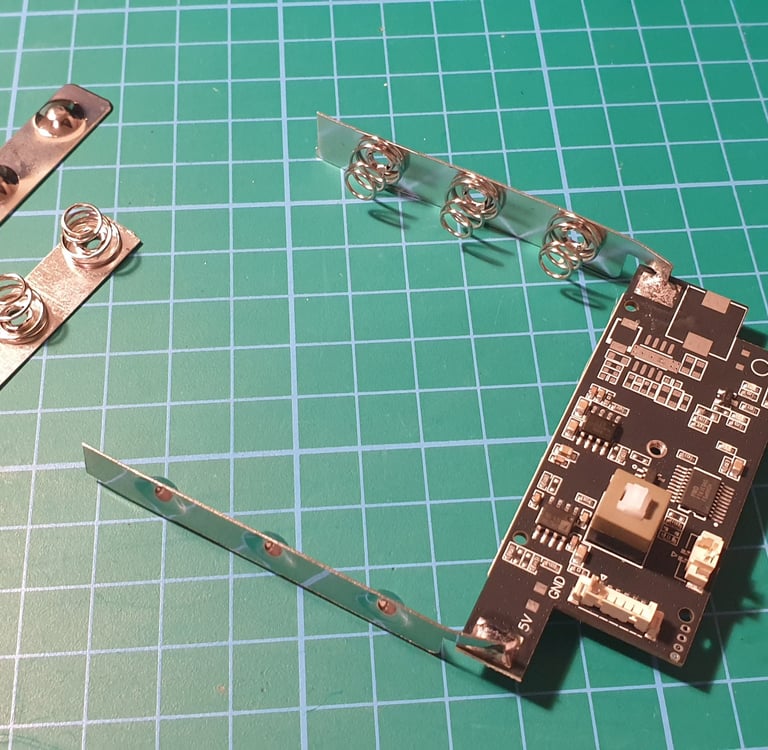

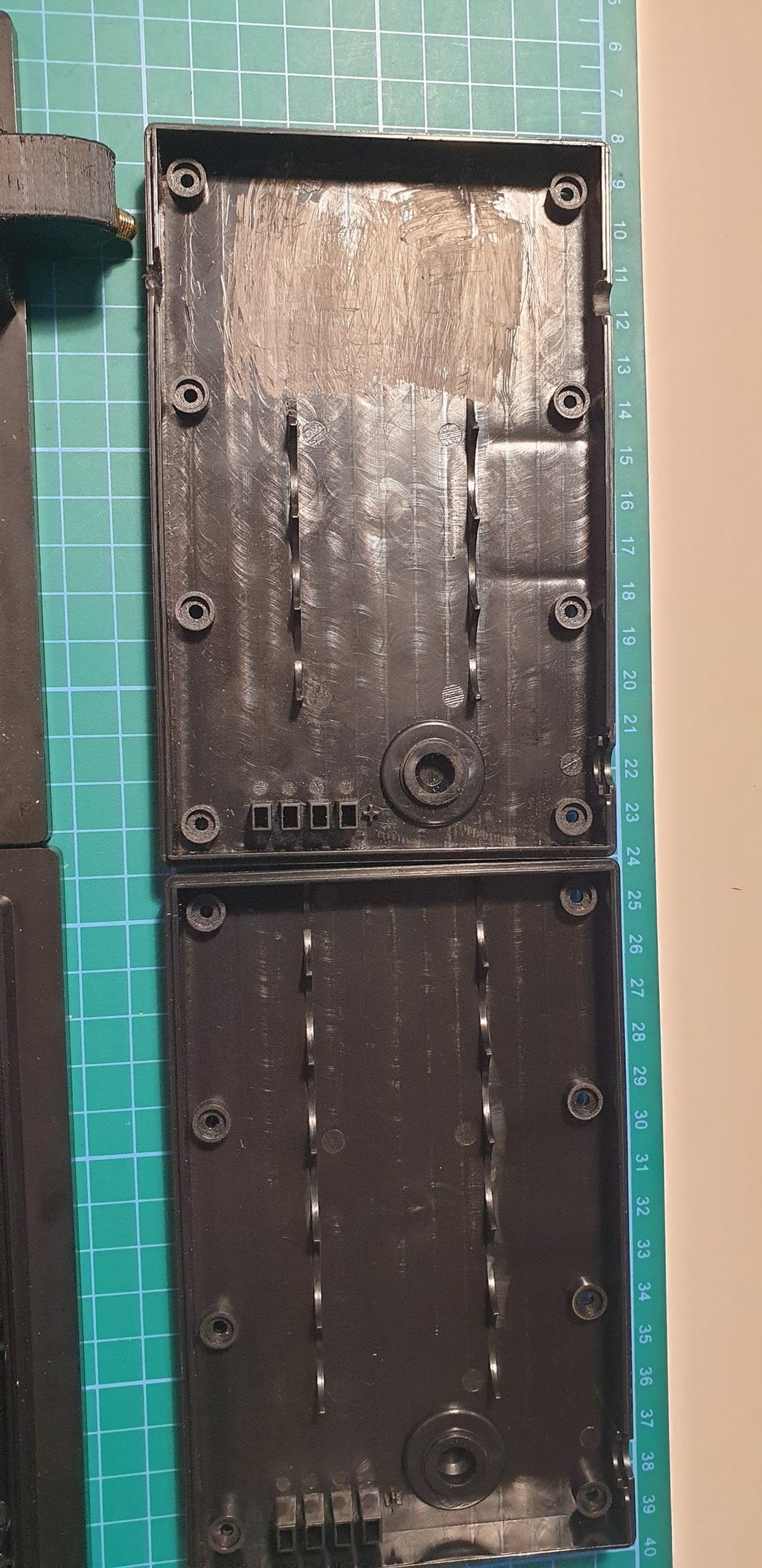

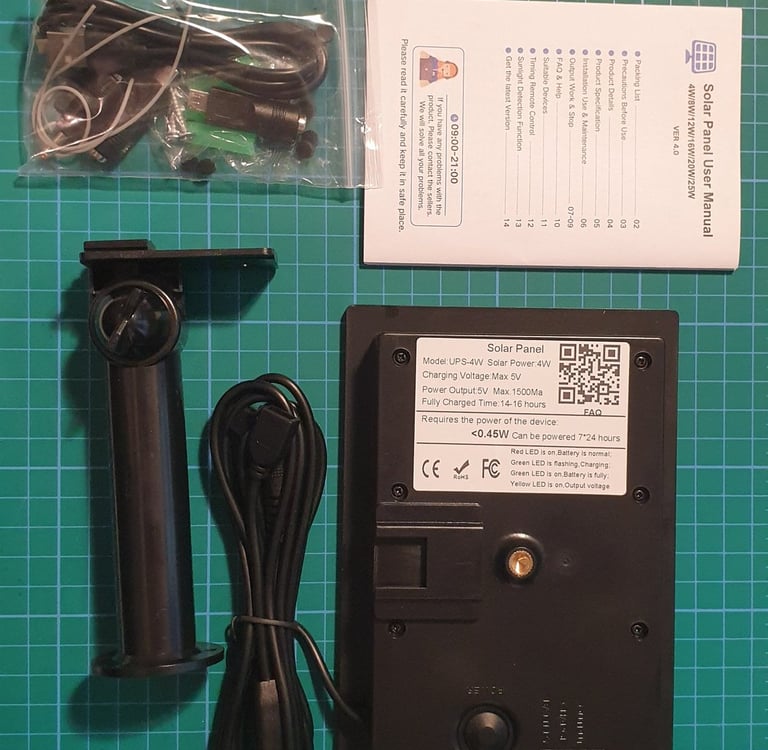

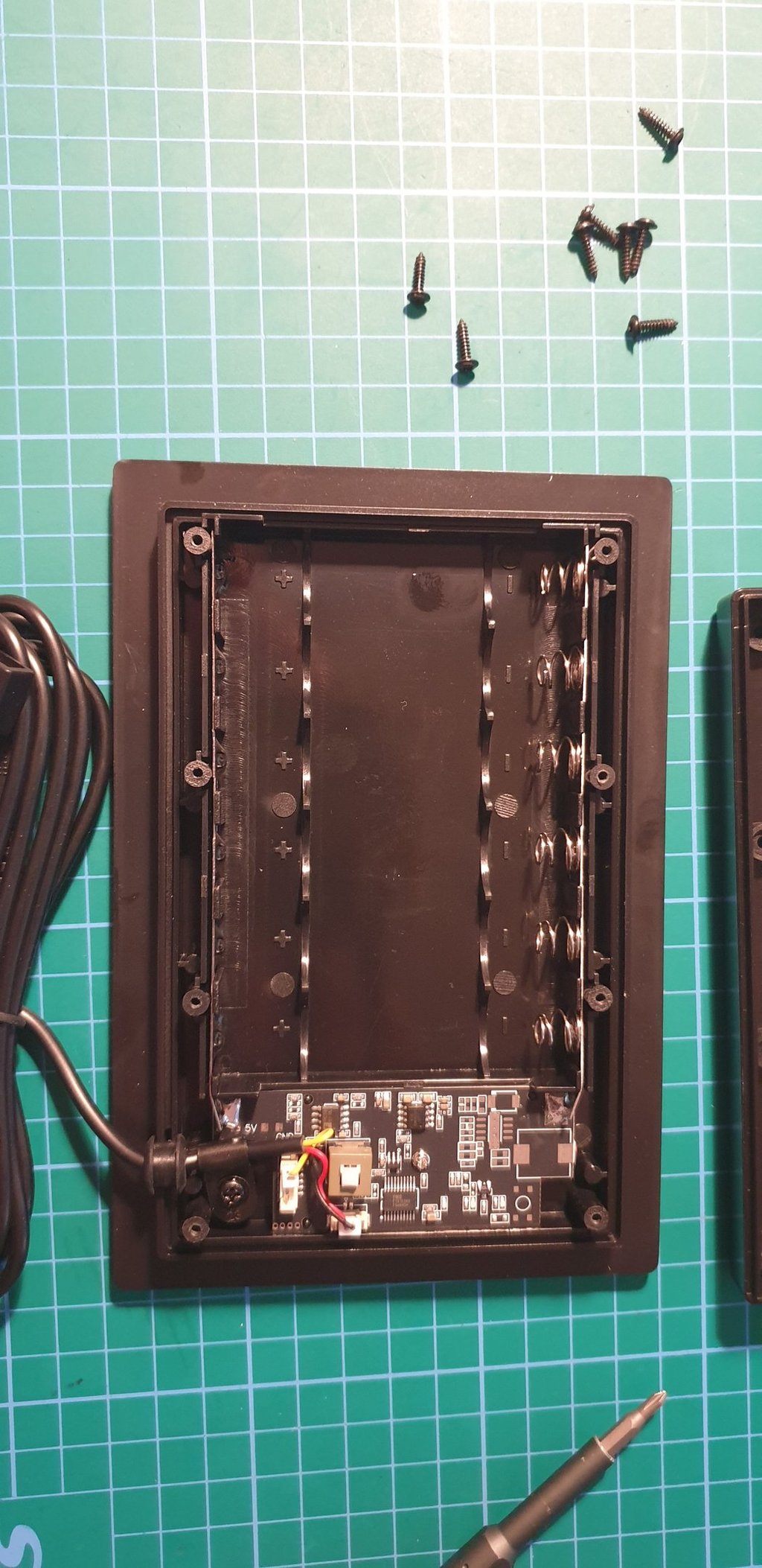

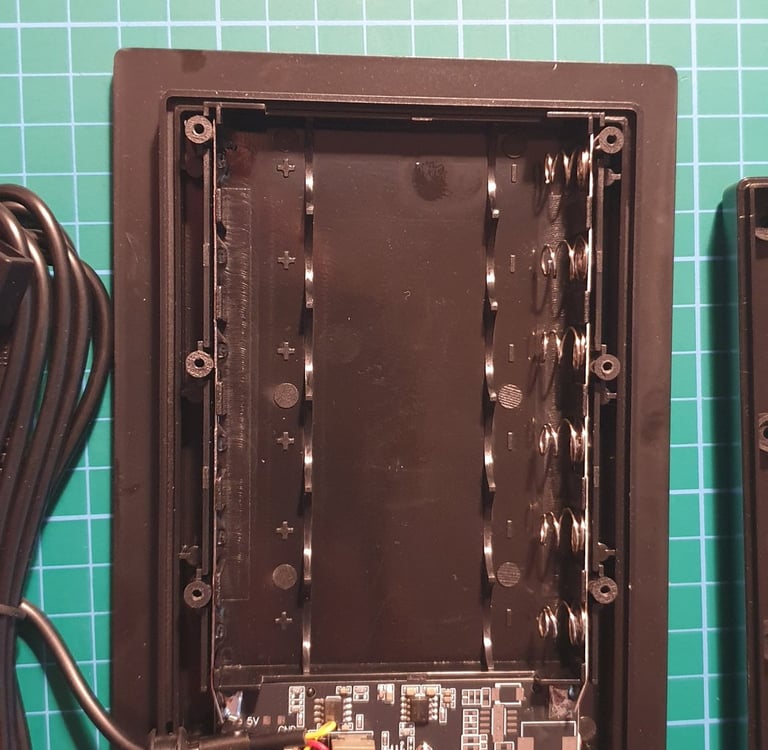

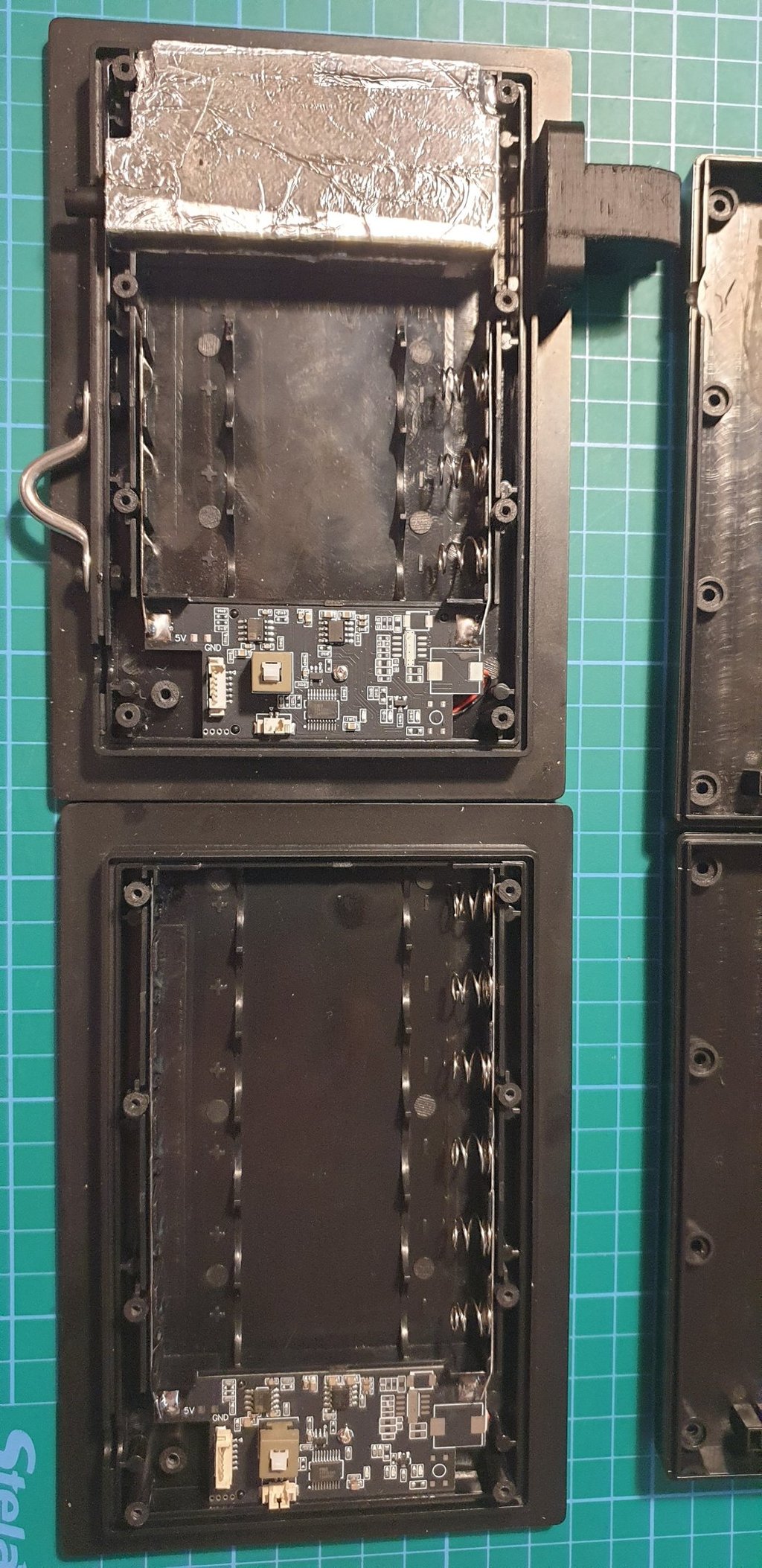

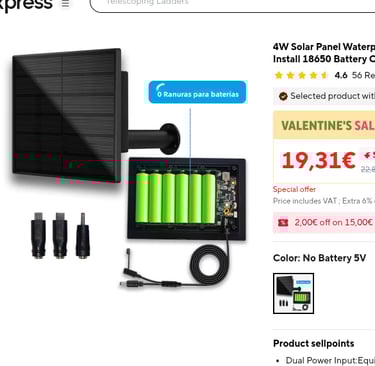

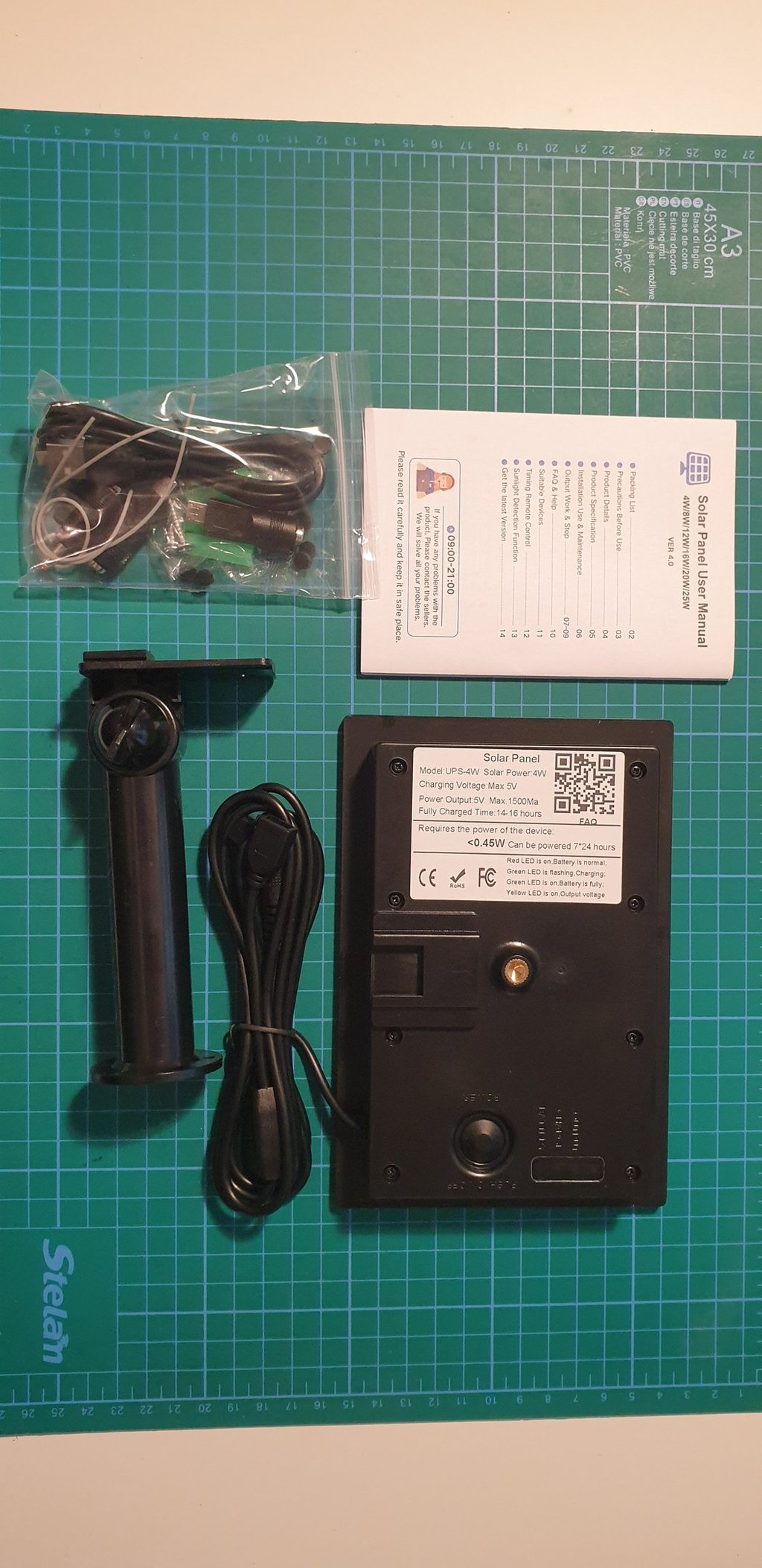

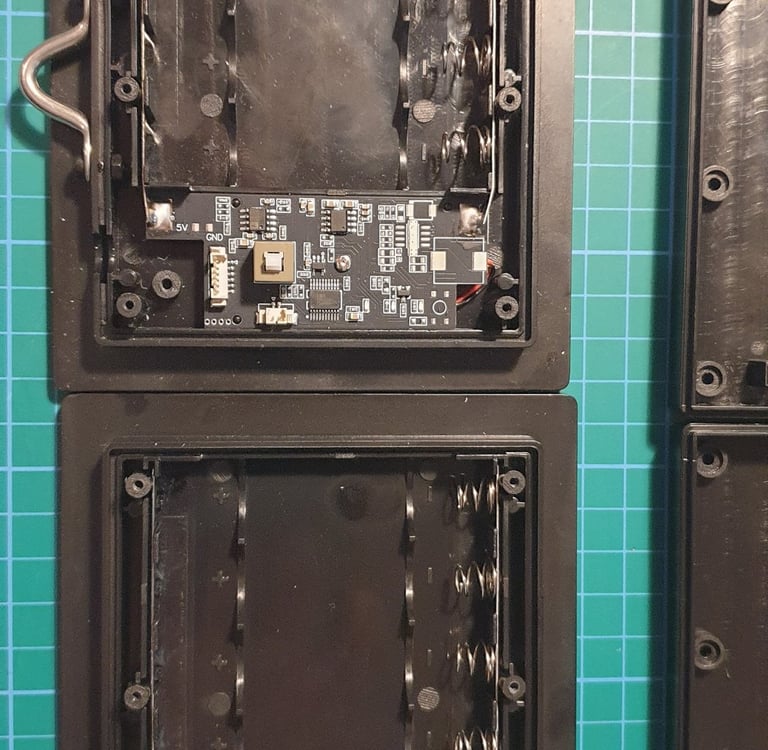

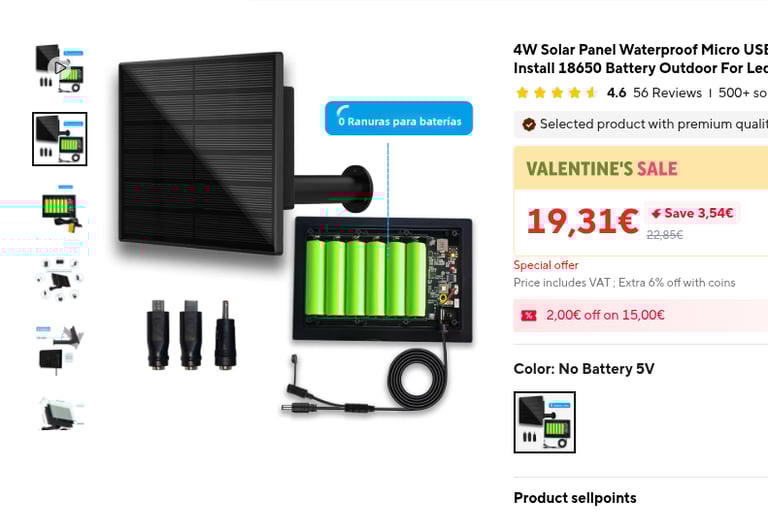

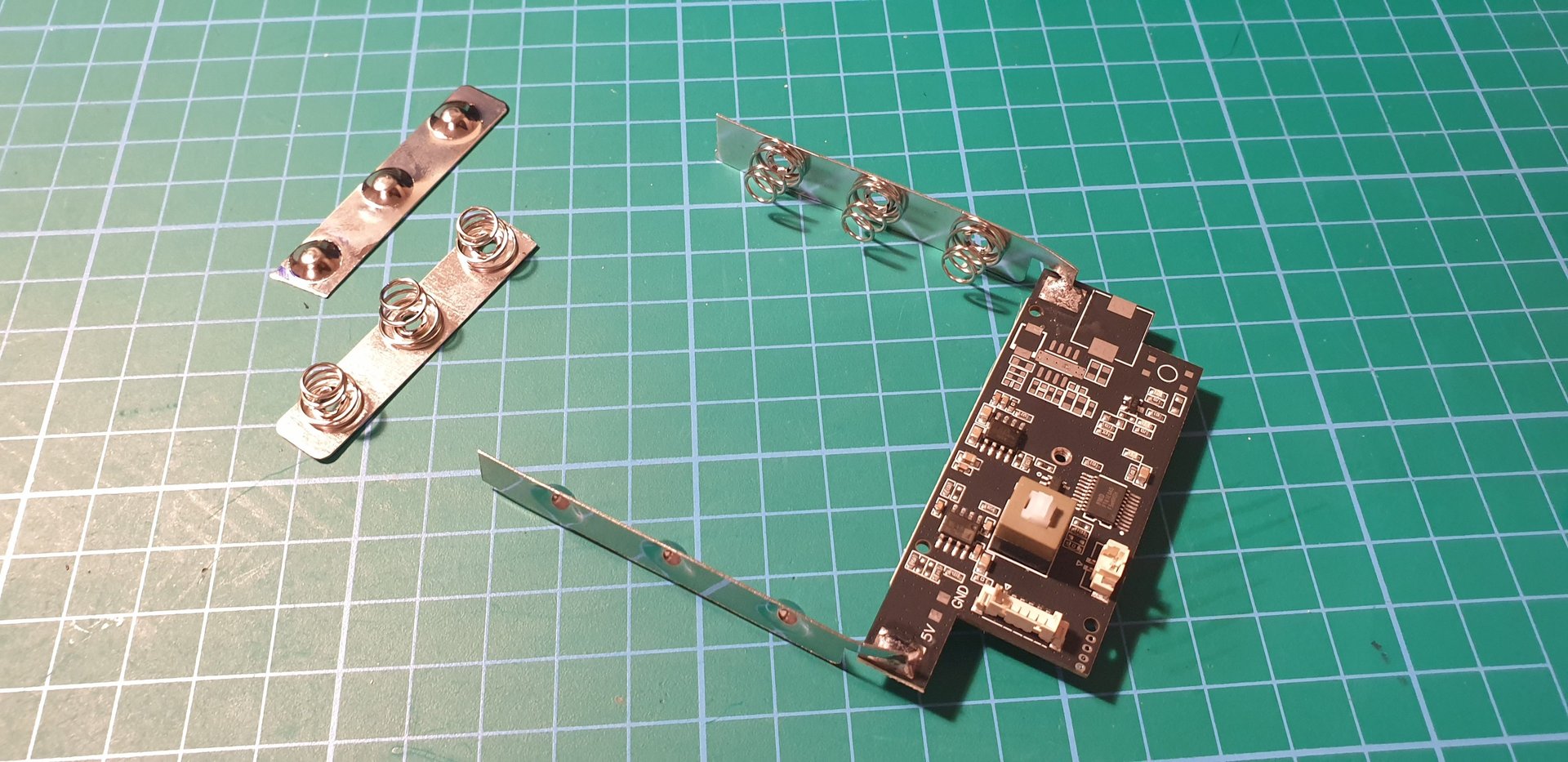

You can find this cases on well know portal with a name starting with "A", they are usually called "solar charger for 18650" , or "camera charging", etc. The box is build of black plastic, has a decent solar panel, and a place to install 6x18650 lipo batteries. The box will also have charging board. They are also weather resistant. I didn`t have any issues with it, even though the oldest boxes are in use for about 6 months. This boxes can be found for 16-20 Euro

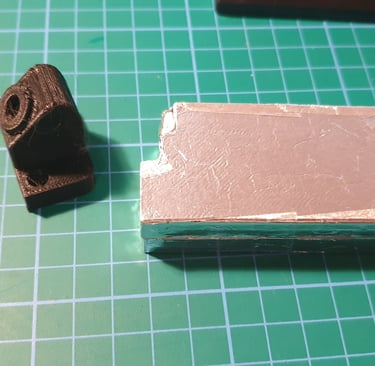

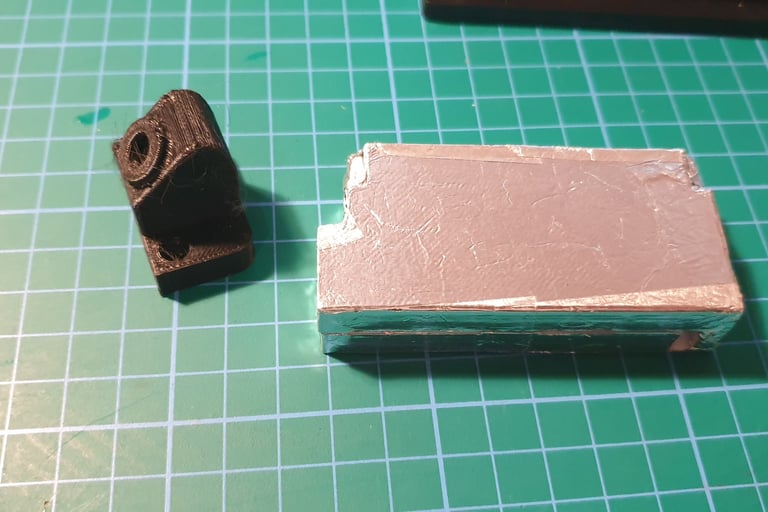

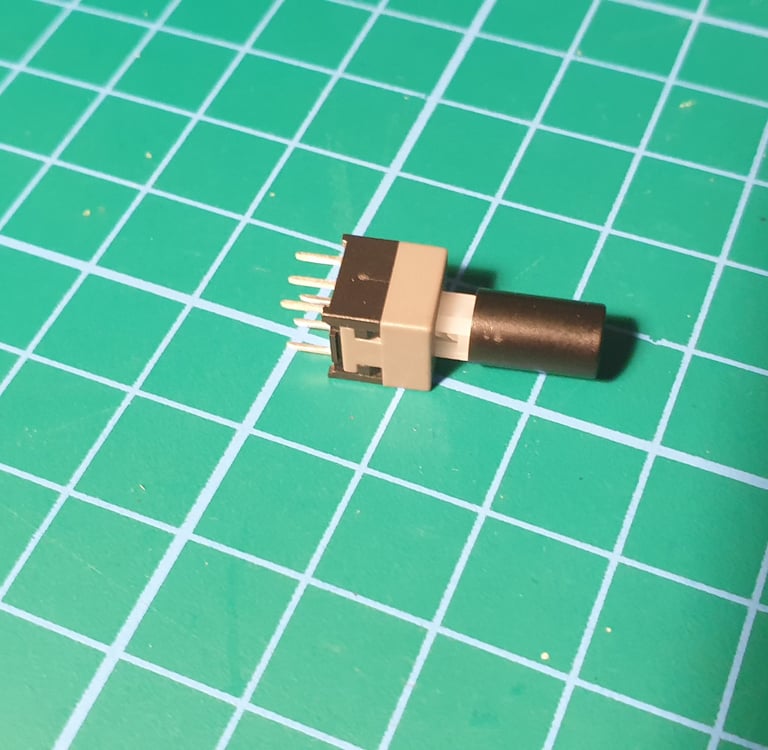

3D printed parts & power botton
